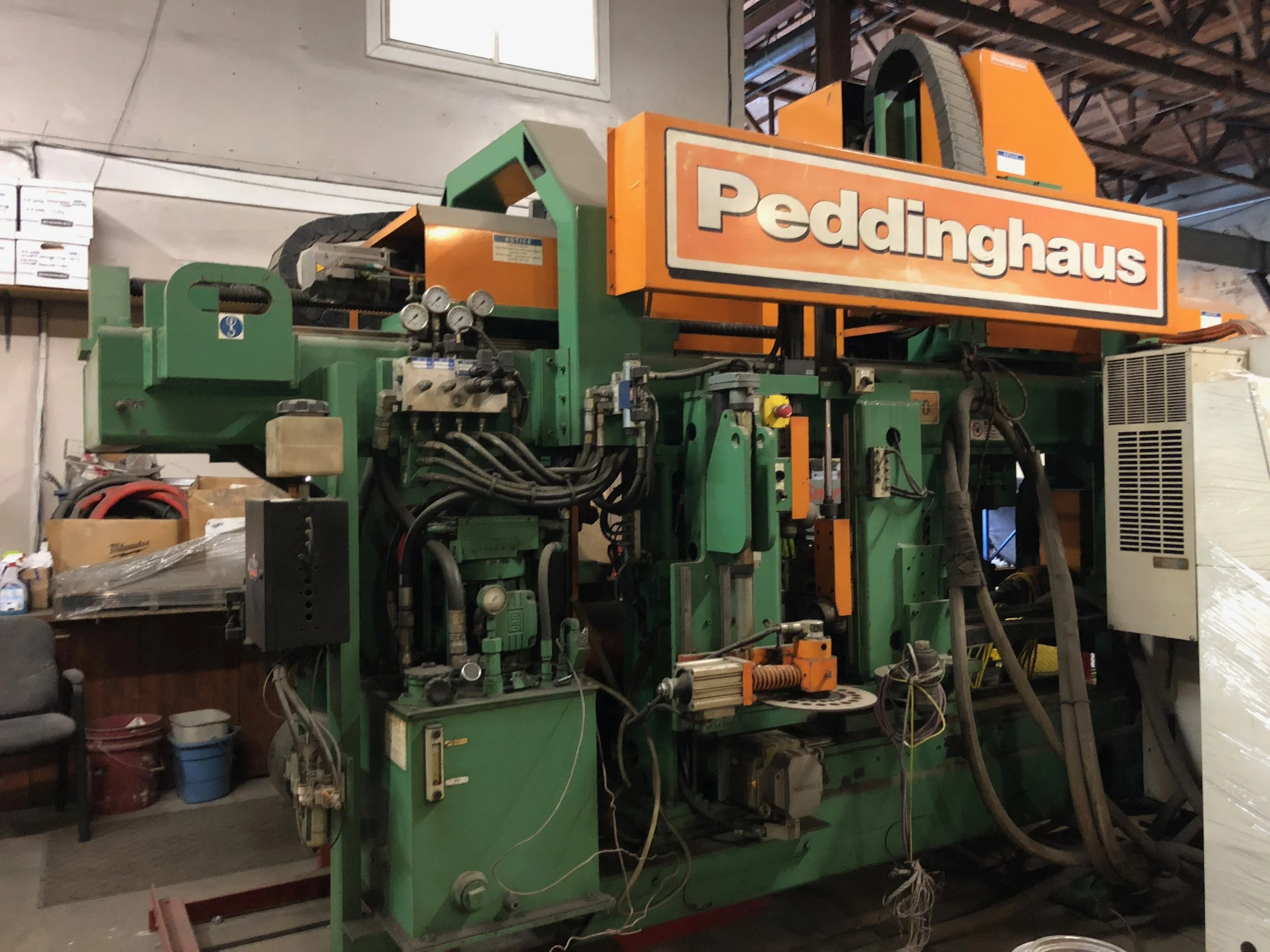

USED 3 SPINDLE CNC PEDDINGAHUS MDL PCD 1100/3C (2011)

SPECIFICATIONS
THIS MACHINE WAS MANUFACTURED IN 2011
MAX. BEAM WIDTH: 44” (1100mm)
LENGTH MINIMUM: 64” (1632mm)
MAX. PART WEIGHT: 300lbs/ft 18,000 lbs (8165kg)
MAX. HOLE DIAMETER: 1 9/16” (40mm)
SPINDLE SENSING: AUTOMATIC
NUMBER OF DRILL SPINDLES: Three (3)
DRILL SPEED: Min 200 RPM Max 850RPM
MATERIAL POSITIONING SPEED: 100 FPM (30.5m/min)
CNC CONTROL: SIEMENS 840Di
SPINDLE MOTOR HP: 13.5 HP each (Hydr. Motor)
VOLTAGE 3/460/60

This machine is in storage and available for immediate delivery
Factory trained technician for installation & operator training can be provided at extra cost

TERMS: Net Due Prior To Shipping
DELIVERY: In Stock, Subject to Prior Sale
FOB: Kent, WA
