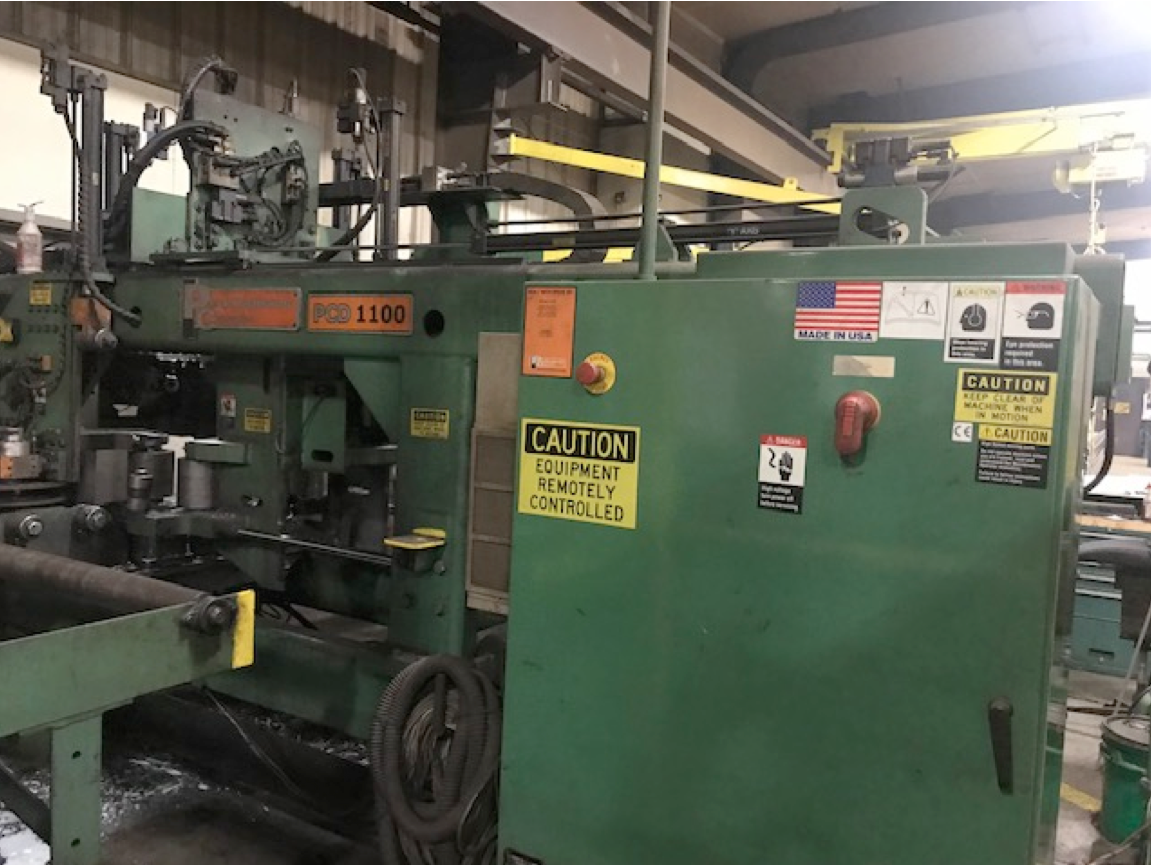

USED PEDDINGHAUS 3 SPINDLE CNC DRILL LINE MDL PCD1100/3

SPECIFICATIONS

THIS MACHINE WAS MANUFACTURED IN 2006 (SN 56176)
MAX. BEAM WIDTH: 44” (1100mm)
LENGTH MINIMUM: 64” (1632mm)
MAX. PART WEIGHT: 300lbs/ft 18,000 lbs (8165kg)
MAX. HOLE DIAMETER: 1 9/16” (40mm)
SPINDLE SENSING: AUTOMATIC
NUMBER OF DRILL SPINDLES: Three (3)
DRILL SPEED: Min 200 RPM Max 850RPM
MATERIAL POSITIONING SPEED: 100 FPM (30.5m/min)
CNC CONTROL: SIEMENS 840Di
SPINDLE MOTOR HP: 13.5 HP each (Hydr. Motor)
VOLTAGE 3/460/60
THIS MACHINE IS STILL UNDER POWER and AVAILABLE FOR IMMEDIATE DELIVERY FACTORY TRAINED TECHNICIAN FOR INSTALLATION & OPERATOR TRAINING CAN BE PROVIDED AT EXTRA COST

TERMS: Net Due Prior To Shipping
DELIVERY: In Stock, Subject to Prior Sale
FOB: Stevensville, MT
PRICE: USD $110,500.00
